Running Xi-cam from source in Windows

Install Python

Download and install Python 2.7 for Windows: https://www.python.org/downloads/release/python-2713/ (Windows x86-64 MSI installer)

Install Git

Download and install the Git client: https://git-scm.com/download/win

Clone Xi-cam

_images/wininstall_1.png
  1. Open PyCharm and click on “Check out from Version Control” and then “Git”.
  2. Enter: https://github.com/ronpandolfi/Xi-cam/ and clone.

Configure Python Interpreter

You will now see Xi-cam’s files, and need to define which Python version to use:

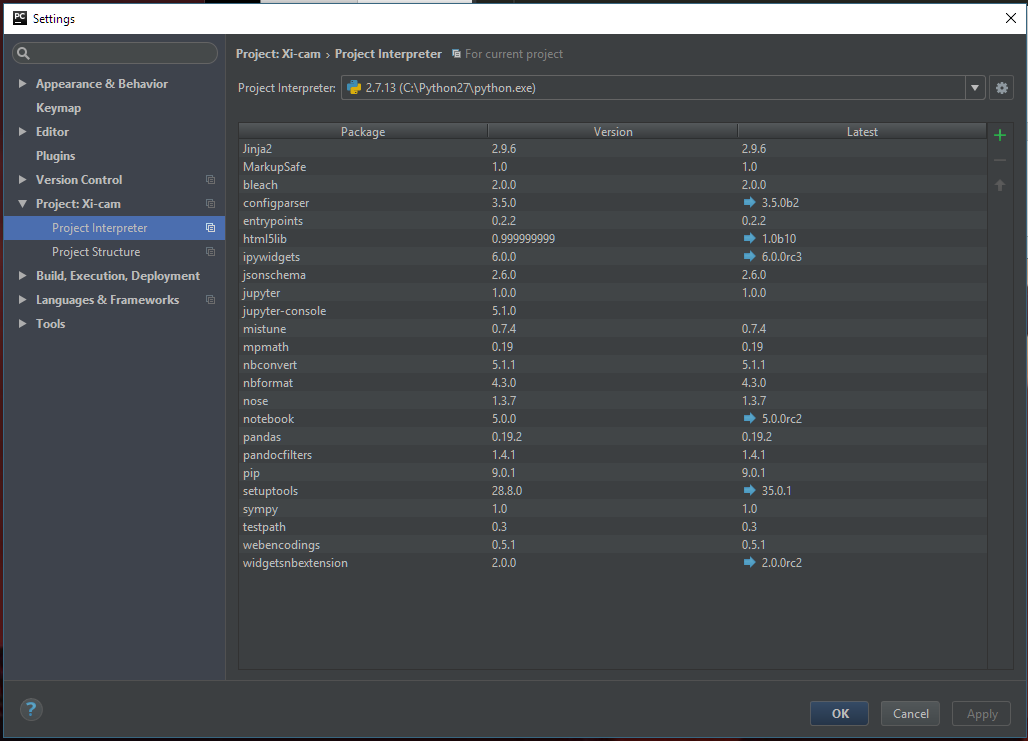

  1. Click “Ctrl + Alt + s” to open Setting.
  2. Under Project: Xi-cam you will see Project Interpreter. Select C:\Python27\python.exe and close the “Settings” by clicking “OK”.
_images/wininstall_3.png

Install Dependencies

If you try to run Xi-cam by clicking on the green arrow you will see the missing packages. We will start with clicking on “Install requirements”. This will install some but NOT ALL dependencies.

_images/wininstall_2.png

You will need to download remaining packages from the Unofficial Windows Binaries for Python Extension Packages:

http://www.lfd.uci.edu/~gohlke/pythonlibs/

From here we can download packages that can be easily installed with pip. The missing packages are (at least for me) are: scipy, pyFAI, tifffile and scikit-image. We also need to change numpy since the numpy installed by PyCharm is missing MKL. At the beginning of the package find numpy in the list and click on it:

For our 64bit version and python 2.7 we will download:

  • numpy-1.12.1+mkl-cp27-cp27m-win_amd64.whl
  • scipy-0.19.0-cp27-cp27m-win_amd64.whl
  • tifffile-2017.3.17-cp27-cp27m-win_amd64.whl
  • scikit_image-0.13.0-cp27-cp27m-win_amd64.whl

To install these, open a command prompt by pressing [Windows] + [R] and enter “cmd”.

To test that pip is installed and accessible:

> pip -V
pip 9.0.1 from c:\python27\lib\site-packages (python 2.7)

If you get an error here, add the python27 into your windows environment variables:

> set PATH=%PATH%;C:\Python27;C:\Python27\Scripts

now run

> pip install --upgrade setuptools pip

To change into the Download folder type

> cd Download

(this depends on the location of you Download folder) Lets first install the correct numpy with MKT Type:

> pip2.7 install numpy-1.12.1+mkl-cp27-cp27m-win_amd64.whl

(the 2.7 is for python 2.7 in case you have a python 3 installation)

Next tifffile, just type:

> Pip2.7 install tifffile-2017.3.17-cp27-cp27m-win_amd64.whl

then:

> pip2.7 install scikit_image-0.13.0-cp27-cp27m-win_amd64.whl

and finally:

> pip2.7 install scipy-0.19.0-cp27-cp27m-win_amd64.whl

now (hopefully) just pyfai left. Just type:

> pip2.7 install pyFAI

For PySide currently we need version 1.2.2 therefore use:

> pip2.7 install -U PySide==1.2.2

(the ==1.2.2 tells pip to install the 1.2.2 version)

Now go back to PyCharm and run it.
